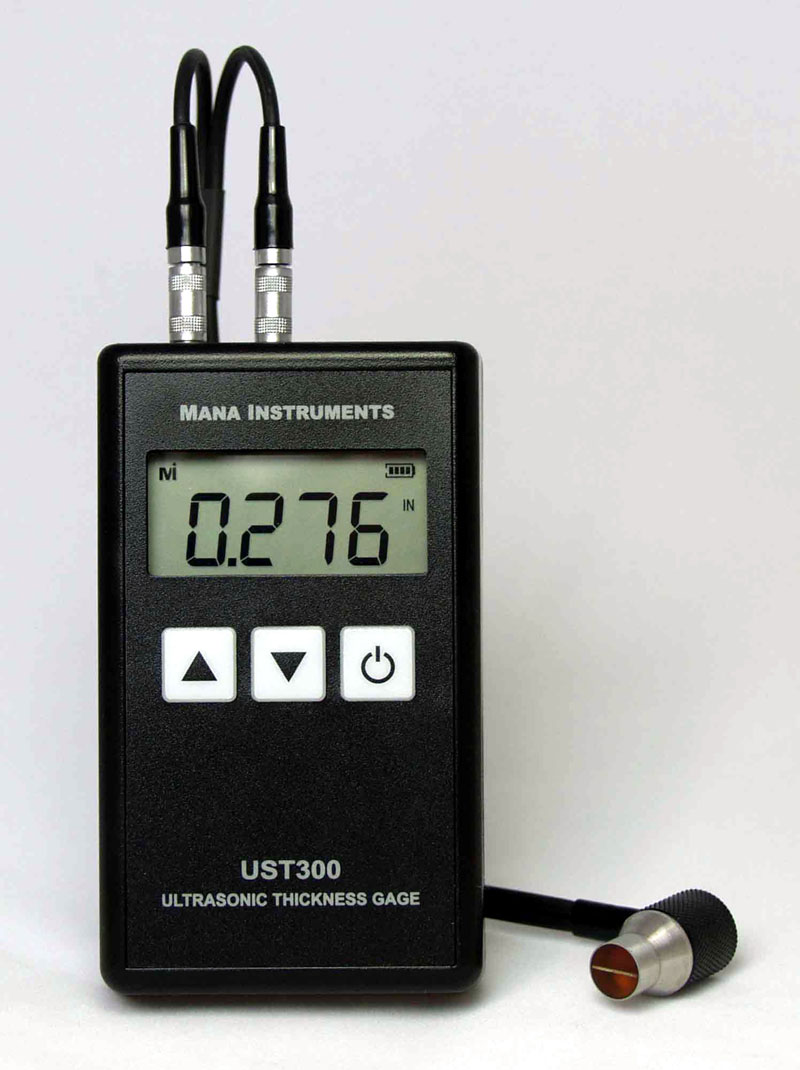

UST300
Basic Ultrasonic thickness gauge

The UST300 ultrasonic thickness gauge. Handy. Pocket sized. Digital display with integrated check of the function of the gauge for operational readiness, continuously indicates battery status, condition of the coupling. exceeding the measuring range. High display stability by means of “averaging”. The sound velocities can be pre-programmed. It will be logged in memory until changed. Measured values and user information are shown on a large, easy–to–read LC display. A display back light (optional) ensures easy reading of screen data, in poorly-lit conditions.

The instrument designed for general thickness measurements on a variety of equipment having access to one side only. It is especially applicable to the measurement of remaining wall thickness on tubes, pipes, pressure vessels, and other parts subject to wall thickness loss due to corrosion or erosion.

Employs the ultrasonic pulse-echo method with dual element transducer. Can be used on flat and curved materials.

Very easy to operate. Switches itself off automatically. Due to the possibility of the zero point correction and the sound velocity programming extended sound path flaws and/or flank flaws in the near and/or the far range can be localized within tight tolerance limits.
Enlarge Specifications :
Measurement Rage : 0.040 to 9.999 inch (1.0 to 254.0mm)
Note : Thickness range depending material, transducer type, surface condition and temperature
Velocity Range : 0.039 to 0.393 in/us (1000 to 9999 m/s)
Resolution : 0.001 or 0.01 up to 9.999 inches; 0.01 or 0.1 up to 99.99 mm, 0.1 above 99.99 mm
Thickness unit of Measure : mm or inch
Measuring Accuracy : +/- 0.004 inch +/- 0.3% ;(+/- 0.10 mm +/- 0.3%)
Display : 4-digit 0.45 inch (11.5 mm) high, Liquid Crystal Display with white LED backlight
Allowable Surface Curvature of the Test Specimen : Radius of curvature > 1.18 inch (30 mm)
Automatic Shut-off : 3 minutes
Probe Type : 5.0MHz / 8mm dual element transducers
Reference Standard : 0.200 inch +/- 0.001 (5.08 +/- 0.02 mm) thick
Low Battery indicator : Continuously indicates battery status
Power Supply : One 9 Volt alkaline battery
Operating Time : 100 hours typical battery life, 60 hours continuous with backlight on
Operating Temperature Range : +32°F to +122°F (0°C to +50°C)
Storage Temperature Range : -40°F to +122°F (-40°C to +50°C) with alkaline battery
Dimensions (L x W x D) : 4.33" x 2.56" x 1.10" (110 mm x 65 mm x 28 mm)
Weight : 7 oz (200 g) with battery
Two (2) Years Warranty

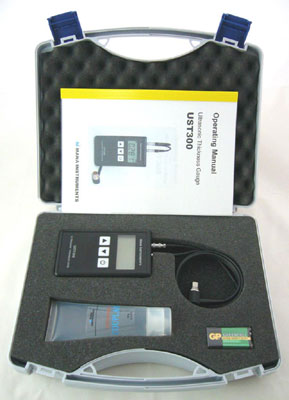

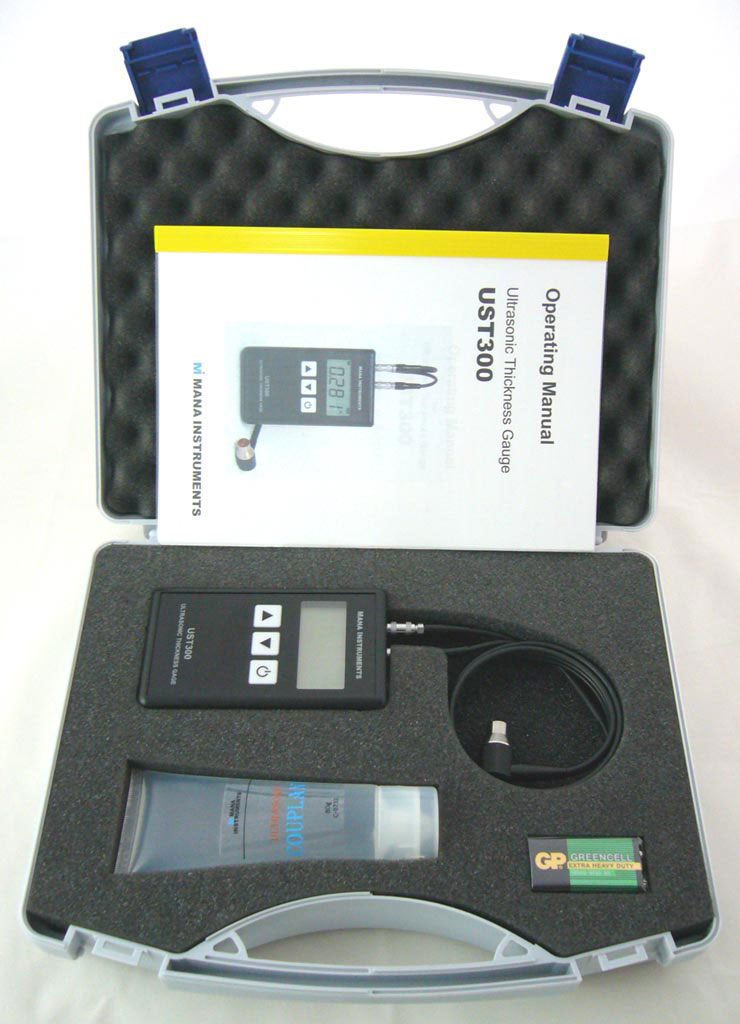

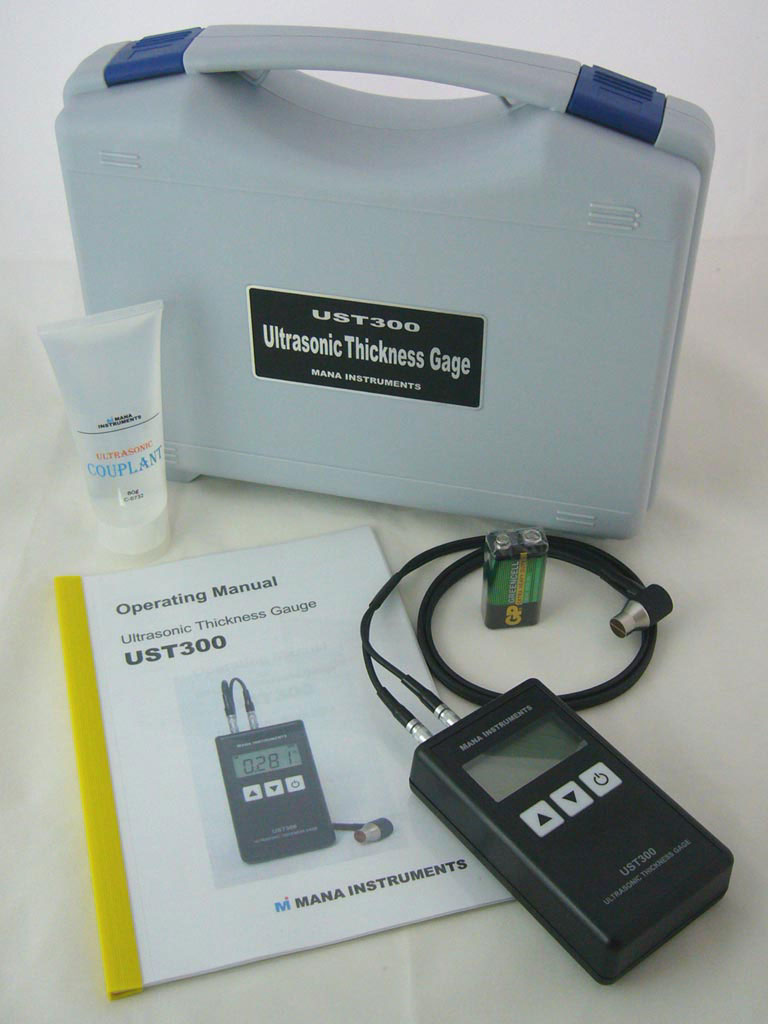

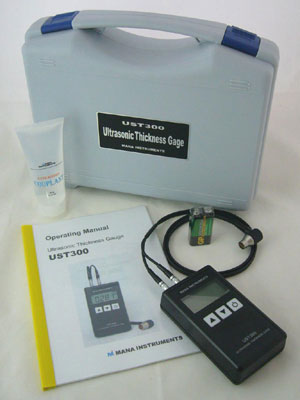

Included in the delivery :
● UST300 Gauge
● D755 Dual Element Probe (5.0MHz / 8mm)
● Couplant (80g ; 3 oz.)
● Operating Manual
● Certificate of Calibration
● 9 Volt alkaline battery (PP3)
● Plastic Carrying Case
Enlarge Enlarge

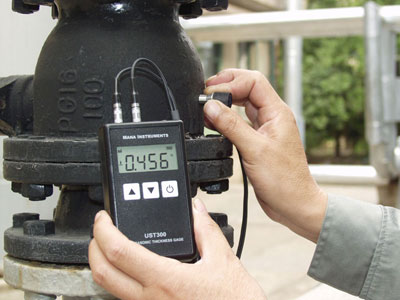

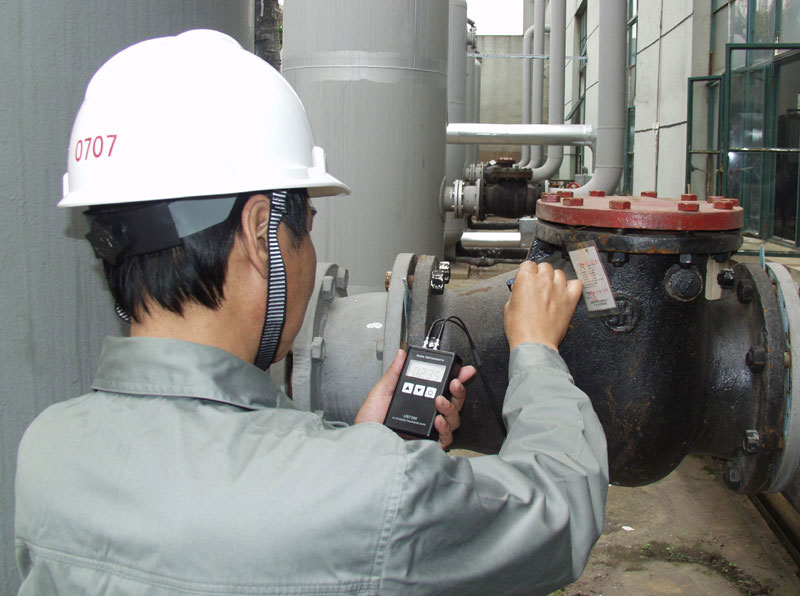

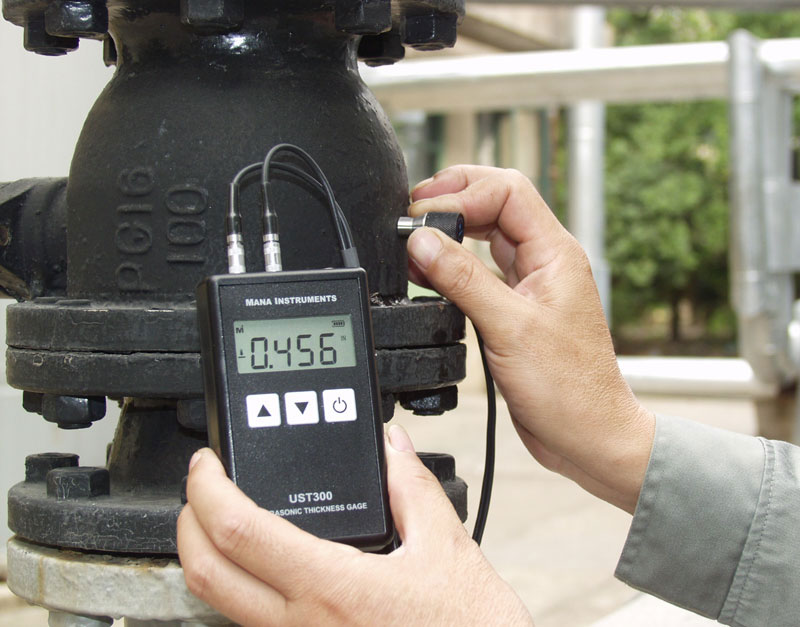

Applications :
● Metal thickness monitoring on conveying systems, marine structures and cranes.
● Corrosion checks on structures, shell plates, ships and bulkheads.

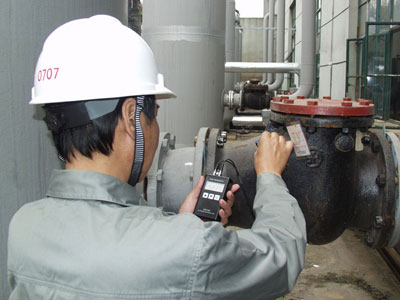

● Metal thickness safety checks on steam and pressurised water systems, transportable gas containers and compressed air systems
● Systematic wall thickness and corrosion monitoring of process vessels, storage tanks and road tankers.
● Quality assurance metal thickness checks.
● Maintenance and safety checks on bridges and street lighting columns
Enlarge Enlarge

Weight of Kit : 1100g
