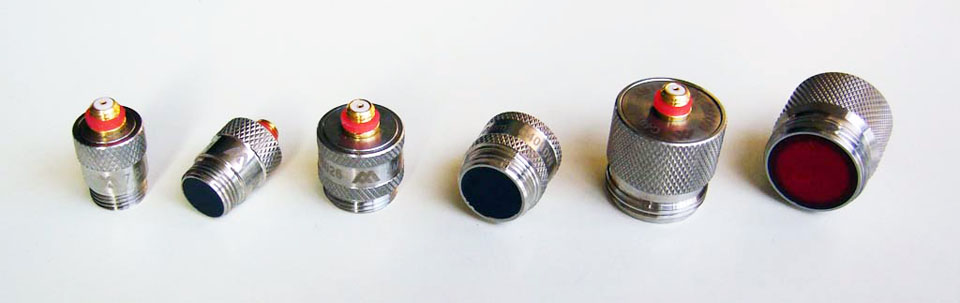

Angle Beam Quick Change Transducers
| Part Numbers |
Element Size |
f (MHz) |
Connector |
| C2306W-SM |
6 |
2.25 |
Microdot |
| C4006W-SM |
6 |
4 |
Microdot |
| C5006W-SM |
6 |
5 |
Microdot |
| C7506W-SM |
6 |
7.5 |
Microdot |
| C1010W-SM |
10 |
1 |
Microdot |
| C2310W-SM |
10 |
2.25 |
Microdot |
| C3510W-SM |
10 |
3.5 |
Microdot |
| C4010W-SM |
10 |
4 |
Microdot |
| C5010W-SM |
10 |
5 |
Microdot |
| C7510W-SM |
10 |
7.5 |
Microdot |
| C1012W-SM |
12.7 |
1 |
Microdot |
| C2312W-SM |
12.7 |
2.25 |
Microdot |
| C3512W-SM |
12.7 |
3.5 |
Microdot |
| C4012W-SM |
12.7 |
4 |
Microdot |
| C5012W-SM |
12.7 |
5 |
Microdot |

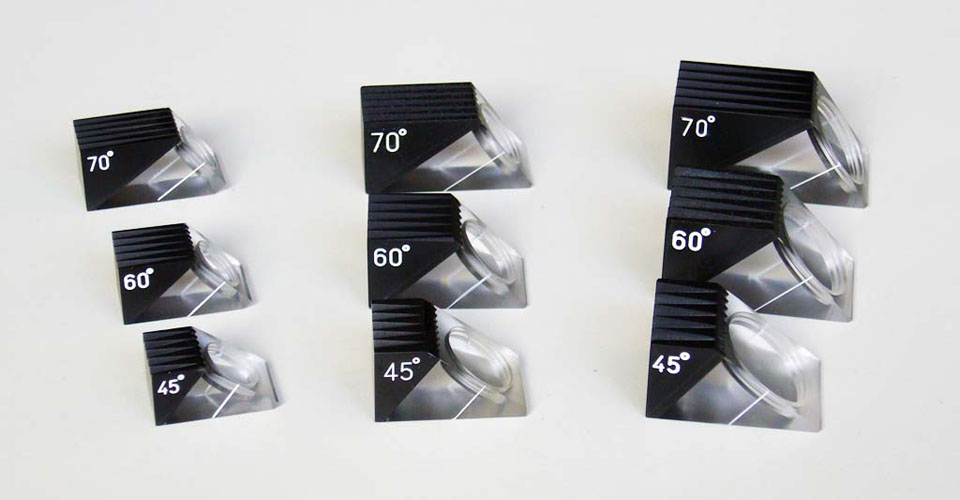

Wedge For Quick Change Transducers
| Part Numbers |
ß (Steel) |
For QC |
Size |
Thread |
| W6-45 |
45º |
6 mm |
11.4 x 19.1 x 9.4 mm |
3/8 - 32" |
| W6-60 |
60º |
6 mm |
11.4 x 21.3 x 11.2 mm |
3/8 - 32" |
| W6-70 |
70º |
6 mm |
11.4 x 25.4 x 12.7 mm |
3/8 - 32" |
| W10-45 |
45º |
10 mm |
14 x 22.6 x 11.9 mm |
1/2 - 28" |
| W10-60 |
60º |
10 mm |
14 x 26.4 x 14.0 mm |
1/2 - 28" |
| W10-70 |
70º |
10 mm |
14 x 30.2 x 14.7 mm |
1/2 - 28" |
| W12-45 |
45º |
12.7 mm |
17.8 x 26.7 x 14.0 mm |
11/16 - 24" |
| W12-60 |
60º |
12.7 mm |
17.8 x 31.5 x 16.3 mm |
11/16 - 24" |
| W12-70 |
70º |
12.7 mm |
17.8 x 35.8 x 17.3 mm |
11/16 - 24" |

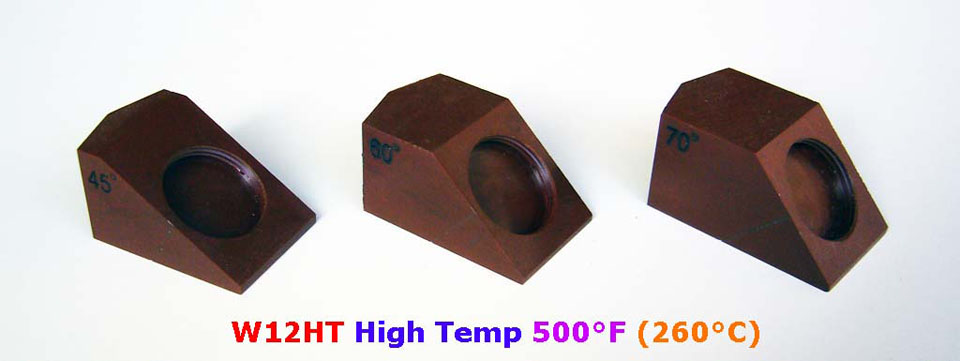

| W12HT-45 |
45º |
12.7 mm |
20.8 x 31.6 x 16.9 mm |
11/16 - 24" |
| W12HT-60 |
60º |
12.7 mm |
20.8 x 33.9 x 16.9 mm |
11/16 - 24" |
| W12HT-70 |
70º |
12.7 mm |
20.8 x 36.1 x 18.1 mm |
11/16 - 24" |
